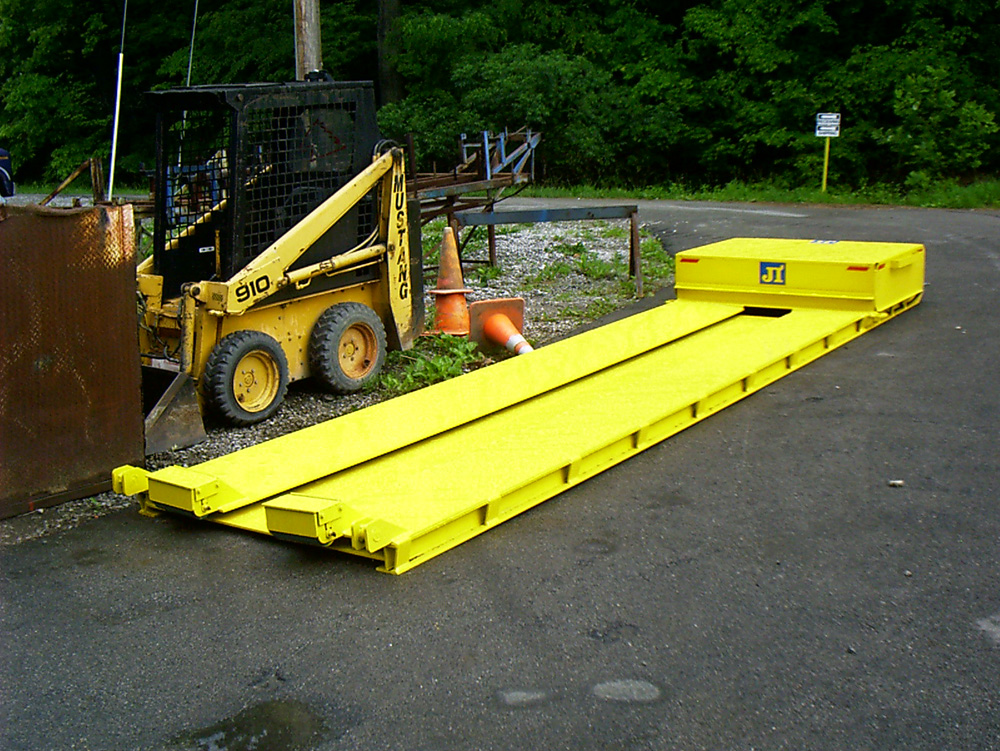

Super Low Belt Conveyor Tail Piece

Super Low Belt Conveyor Tail Piece

The Super Low Belt Conveyor Tail Piece from Johnson Industries is a high quality conveyor belt unit for quarries, mines, and anywhere conveyor belts are used. With thick middle and side plating, the super low conveyor belt is a reliable system for your industry. Featuring external grease hoses and an easy lift off roller protection lid, the super low belt conveyor tail piece from Johnson Industries is sufficient for a variety of industries.

PRODUCT SPEC SHEET

Download Now

File name: Equipment_Conveyor_Belt_Tail_Piece.pdf

130728 19175

Equipment Specifications

  • 3/8" Thick middle and side plating
  • 4 3/4" High Dump area x 16' long
  • Dual front belts hold down rollers 4" x 9"
  • Easy lift off roller protection lid
  • Side tie downs
  • External grease hoses
  • Lift up rear lid for easy cleaning access
  • Rear tie downs, front shives for wire rope
  • Rollers have removable shafts, not welded
  • Self cleaning finned wing roller

Standard Dimensions

  • Overall Height: 34" minimum
  • Ground Clearance: 10"
  • Width: 97" - 109"
  • Frame Width: 54"
  • Deck Length: 142"
  • Overall Length: 236"

Options

Can build to accommodate belts from 30" to 48" wide.



INDUSTRIES USED OR CAN BE USED

Mining Industries
Salt Mining

Coal Mining

Molybdenum Mining

Zinc Mining
Potash Mining

Gold Mining

Rock Mining

Quarries
Warehouses

Factories

Airports


Johnson Industries provides a range of custom designed and built vehicles and equipment to meet the needs of many different industries. From industrial duty cars, to sampling systems, Johnson Industries is the authority on industrial equipment and vehicles. Johnson Industries started out serving the coal mining industry and now serves the utility, municipality, communication, airport, factory, industrial, construction, & recreation industries.
